Lecture 1 - Beam Deflection Differential Equation | PDF | Bending | Beam (Structure) Use fbds and equilibrium to find equations for the moment m(x) in each segment. integrate the moment curvature equation twice → equations for v’(x) and v(x). remember to include the constants of integration. split the beam into segments. write down the load function p(x) in each segment. This last is a restatement of the differential equation for force equilibrium found above, which, since we increased the order of the system by differentiating the moment equilibrium equation, now appears as a boundary condition.

Beam Deflection Equations For Linear Systems | PDF | Beam (Structure) | Mechanical Engineering

Beam Deflection Equations For Linear Systems | PDF | Beam (Structure) | Mechanical Engineering This method entails obtaining the deflection of a beam by integrating the differential equation of the elastic curve of a beam twice and using boundary conditions to determine the constants of integration. Chapter 9 deflections of beams 9.1 introduction in this chapter, we describe methods for determining the equation of the deflection curve of beams and finding deflection and slope at specific points along the axis of the beam. The deflection of such beams can be determined by considering them of variable cross section along their length and ap propriately solving the general differential equations of the elastic curves, ei(d2y/dx2) = m, to obtain deflection expres sions or by the application of castigliano’s theorem. This method entails obtaining the deflection of a beam by integrating the differential equation of the elastic curve of a beam twice and using boundary conditions to determine the constants of integration.

Beam Equation Derivation - The Best Picture Of Beam

Beam Equation Derivation - The Best Picture Of Beam The deflection of such beams can be determined by considering them of variable cross section along their length and ap propriately solving the general differential equations of the elastic curves, ei(d2y/dx2) = m, to obtain deflection expres sions or by the application of castigliano’s theorem. This method entails obtaining the deflection of a beam by integrating the differential equation of the elastic curve of a beam twice and using boundary conditions to determine the constants of integration. Given f (x) and derivatives f 0(a), f 00(a), f 000(a), etc, the purpose of taylor's series is to estimate f (x h) at some distance h from x. (x h) = hn o(h(n 1)) k!. This video provides a comprehensive derivation of the differential equation for the deflection of a beam. Deflection . to begin the analysis we will write the equation (or equations) for the. bending moments in the beam. in some cases a single bending moment expression holds for the entire length of the beam. in other cases we must w. ite separate bending moment expressions for each portion of the beam betwee.

Deriving The Differential Equations That Describe Beam Deflection Through Relationships Between ...

Deriving The Differential Equations That Describe Beam Deflection Through Relationships Between ... Given f (x) and derivatives f 0(a), f 00(a), f 000(a), etc, the purpose of taylor's series is to estimate f (x h) at some distance h from x. (x h) = hn o(h(n 1)) k!. This video provides a comprehensive derivation of the differential equation for the deflection of a beam. Deflection . to begin the analysis we will write the equation (or equations) for the. bending moments in the beam. in some cases a single bending moment expression holds for the entire length of the beam. in other cases we must w. ite separate bending moment expressions for each portion of the beam betwee.

Fixed Beam Deflection Derivation - The Best Picture Of Beam

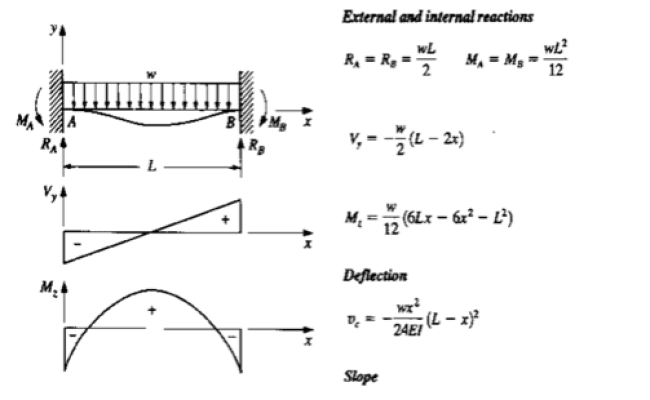

Fixed Beam Deflection Derivation - The Best Picture Of Beam Deflection . to begin the analysis we will write the equation (or equations) for the. bending moments in the beam. in some cases a single bending moment expression holds for the entire length of the beam. in other cases we must w. ite separate bending moment expressions for each portion of the beam betwee.
