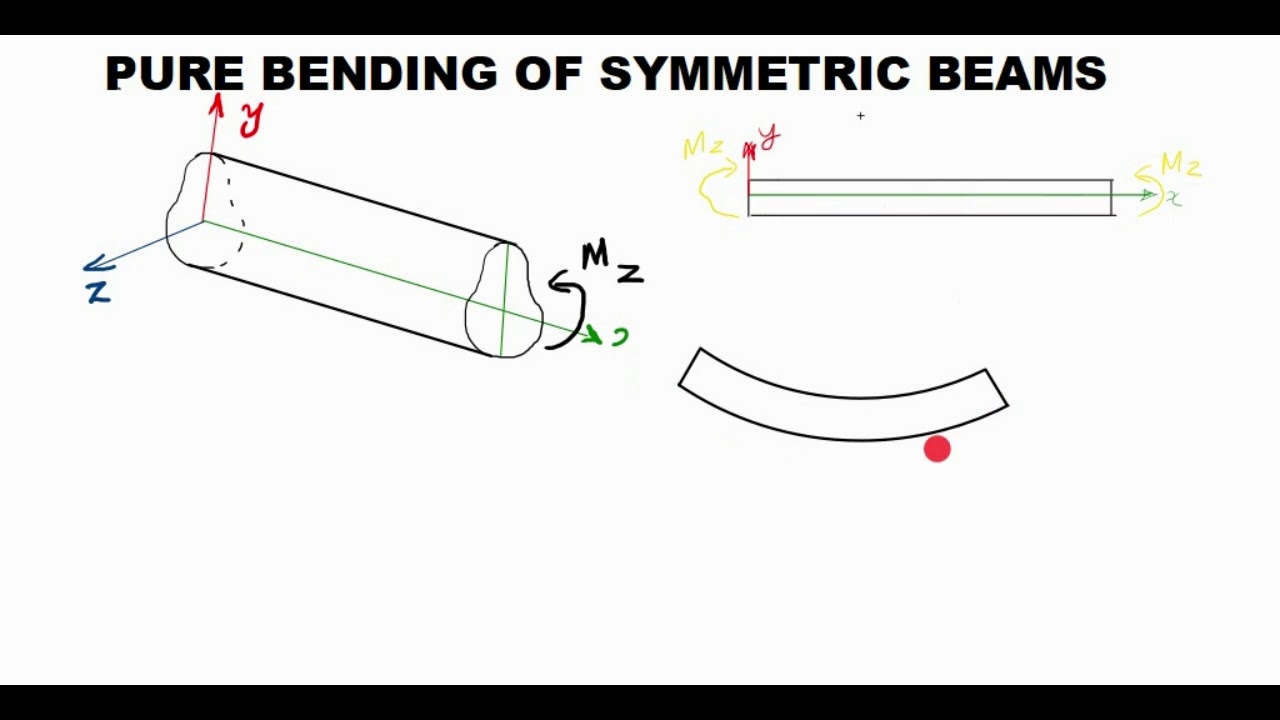

Module 4 Lecture 1a Pure Bending Of Symmetric Beams

Chapter 4 Pure Bending Solution | PDF

Chapter 4 Pure Bending Solution | PDF Ktu s4 mechanical engineering me 202 advanced mechanics of solids module 4 lecture 1a pure bending of symmetric beams part 1 … more. Principle of superposition: the normal stress due to pure bending may be combined with the normal stress due to axial loading and shear stress due to shear loading to find the complete state of stress.

Chapter 4 Pure Bending | PDF | Bending | Beam (Structure)

Chapter 4 Pure Bending | PDF | Bending | Beam (Structure) Lecture notes on pure bending in mechanics of materials. covers bending deformations, stress, strain, and composite beams. Structural steel beams are designed to have a large section modulus. Between two beams with the same cross sectional area, the beam with the greater depth will be more effective in resisting bending. structural steel beams are designed to have a large section modulus. This document provides an introduction to pure bending and discusses: 1) pure bending occurs when a member is subjected to equal and opposite couples in the same plane, resulting in zero shear force.

4 Pure Bending | PDF | Bending | Beam (Structure)

4 Pure Bending | PDF | Bending | Beam (Structure) Between two beams with the same cross sectional area, the beam with the greater depth will be more effective in resisting bending. structural steel beams are designed to have a large section modulus. This document provides an introduction to pure bending and discusses: 1) pure bending occurs when a member is subjected to equal and opposite couples in the same plane, resulting in zero shear force. This chapter discusses pure bending of beams. beams are members that support loads applied perpendicular to their longitudinal axis. the objectives are to determine stresses caused by bending, understand bending theory and its applications, and determine normal stresses in symmetric bending of beams. 4 19 sample problem 4. a concrete floor slab is reinforced with5/8 in diameter steel rods. the modulusof elasticity is 29x106psi for steel and3 for concrete. with an appliedbending moment of 40 kip*in for 1 ftwidth of the slab, determine the maximumstress in the concrete and steel. solution:• transform to a section made entirely of concrete. Mech of materials ch 04 lecture 05 revisit bending stress and section modulus of symmetric beams cheng fu chen • 762 views • 5 years ago. • thus far analysis of pure bending limited to members subjected to bending couples acting in a plane of symmetry. • now consider situations in which bending couple does not act in a plane of symmetry.

Lecture - 4-5 - Bending Moment | PDF | Beam (Structure) | Bending

Lecture - 4-5 - Bending Moment | PDF | Beam (Structure) | Bending This chapter discusses pure bending of beams. beams are members that support loads applied perpendicular to their longitudinal axis. the objectives are to determine stresses caused by bending, understand bending theory and its applications, and determine normal stresses in symmetric bending of beams. 4 19 sample problem 4. a concrete floor slab is reinforced with5/8 in diameter steel rods. the modulusof elasticity is 29x106psi for steel and3 for concrete. with an appliedbending moment of 40 kip*in for 1 ftwidth of the slab, determine the maximumstress in the concrete and steel. solution:• transform to a section made entirely of concrete. Mech of materials ch 04 lecture 05 revisit bending stress and section modulus of symmetric beams cheng fu chen • 762 views • 5 years ago. • thus far analysis of pure bending limited to members subjected to bending couples acting in a plane of symmetry. • now consider situations in which bending couple does not act in a plane of symmetry.

Module 4 Lecture 1a Pure Bending of Symmetric Beams
