Conductance And Resistance Pdf Electrical Resistance And Conductance Electrical Network Impedance is the sum of resistance (r) and reactance (x). resistance is the real component of impedance, or re {z} and reactance is the imaginary component of impedance, or img {z}. Learn more about these four basic electrical phenomena in "teach yourself electricity and electronics, 6th edition."sciencewriter dot net.
Confusing Impedances What S The Difference Electrical Pe Review Resistance is the opposition to the flow of electrical current denoted by “r” and measured in ohms “Ω”. for any metal conductor “r” is given by: r = ρl a. where. resistance formulas in dc circuits. where: keep in mind that in pure resistive circuit (where only and only resistors are used), electric resistance “r” is equal to the impedance “z”. As conductance is the complement of resistance, there is also a complementary expression of reactance, called susceptance. mathematically, it is equal to 1 x, the reciprocal of reactance. like conductance, it used to be measured in the unit of mhos but now is measured in siemens. In electrical engineering, susceptance (b) is the imaginary part of admittance (y = g jb), where the real part is conductance (g). the reciprocal of admittance is impedance (z = r jx), where the imaginary part is reactance (x) and the real part is resistance (r). We call this time based opposition, reactance, and like resistance we also measure it in the unit of ohms. as conductance is the complement of resistance, there is also a complementary expression of reactance, called susceptance. mathematically, it is equal to 1 x, the reciprocal of reactance.

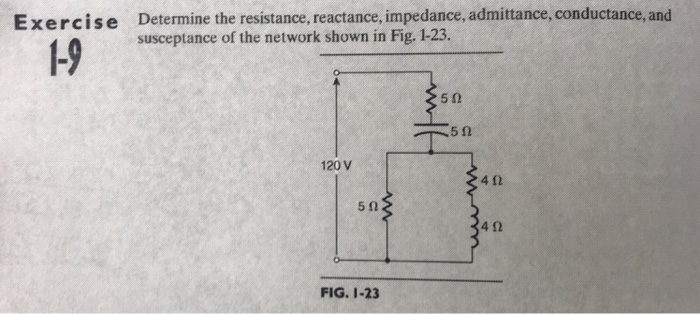

Solved Determine The Resistance Reactance Impedance Chegg In electrical engineering, susceptance (b) is the imaginary part of admittance (y = g jb), where the real part is conductance (g). the reciprocal of admittance is impedance (z = r jx), where the imaginary part is reactance (x) and the real part is resistance (r). We call this time based opposition, reactance, and like resistance we also measure it in the unit of ohms. as conductance is the complement of resistance, there is also a complementary expression of reactance, called susceptance. mathematically, it is equal to 1 x, the reciprocal of reactance. As conductance is the complement of resistance, there is also a complementary expression of reactance, called susceptance. mathematically, it is equal to 1 x, the reciprocal of reactance. I've always seen it as b=1 x, though i'm not confident enough in that to say so definitively. susceptance doesn't come up very often in my field of study. Resistance is the measure of how much a circuit resists current, while conductance is the measure of how much a circuit conducts current. conductance used to be measured in the unit of mhos, or “ohms” spelled backward. Resistance represent how much a circuit resist current, conductance represents how much a circuit conducts current. unit of conductance is “ mhos ” or simply ohms spelled backward.
